AreaTakeOff

Live area takeoff right in Rhino viewport by looking up the bottom surface of the objects that pass the layer keyword filter. The calculation shape is dynamically merged without the need to boolean togather, their combined outline is visualized in the viewport, and area summary is dynamically calculated on the fly. Great for massing study with specific area target in mind.

Command: LakeHouseAreaTakeOff

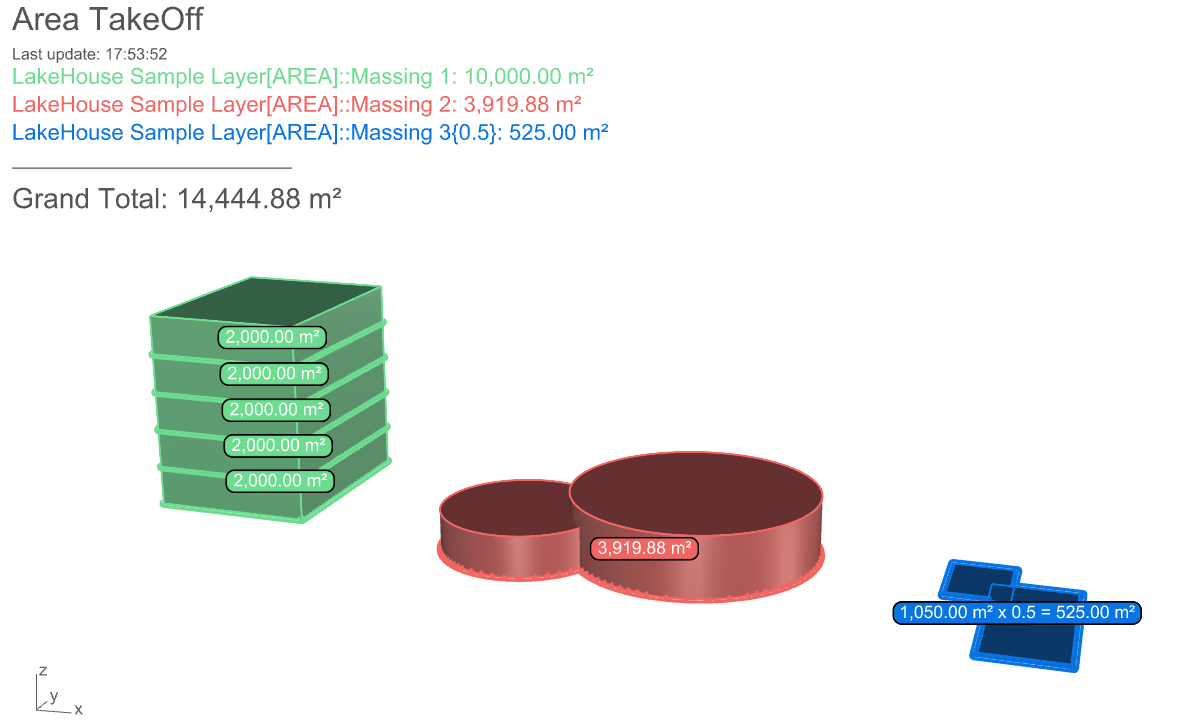

Main Viewport Interface

What You See
Is What You Get

Interactive Drawing Viewport
Real-Time Area Calculations
Dynamic Shape Merging
Auto Convert To m² Or ft² Regardless Of Your Model Unit System

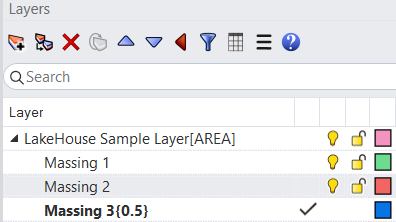

Layer Management System

Simple Management
By Layer Name

Just Need [AREA] In The Layer Name As Keyword
Take In Area Factor From Layer Name Curly Bracket

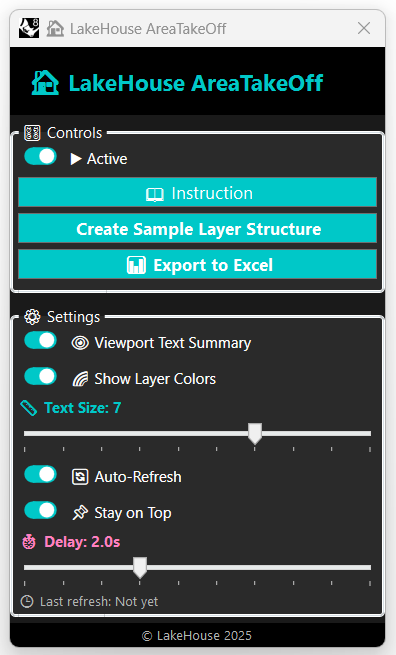

GUI Control Panel

Customizable Control

Global Active/Deactive Switch
Quick Sample Layer Setup
Export Your Summary To Excel
Customizable Text In Summary
Sensitive And UI Setting

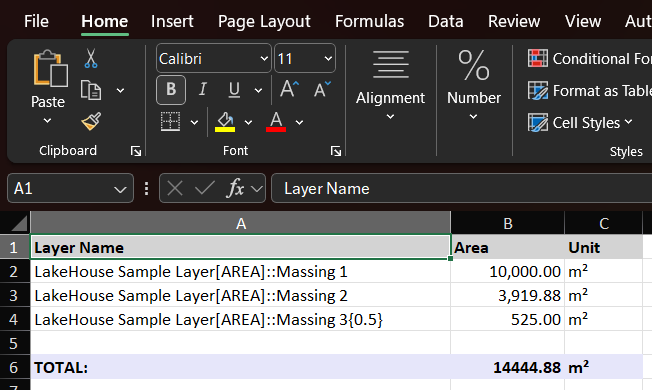

Excel Integration

Export To Excel

Direct Excel Export
Numeric Formatting For Other Usage
